Processor |
---|
Processor socket | LGA 1200 (Socket H5) |
Processor base frequency | 3.6 GHz |
Memory bandwidth supported by processor (max) | 50 GB/s |
System bus rate | 8 GT/s |
Processor operating modes | 64-bit |
Processor boost frequency | 5 GHz |
Thermal Design Power (TDP) | 125 W |
Processor family | 11th gen Intel® Core™ i7 |
Processor ARK ID | 212047 |
Configurable TDP-down | 95 W |
Processor cache | 16 MB |
Processor lithography | 14 nm |
Processor cores | 8 |
Configurable TDP-down frequency | 3.1 GHz |

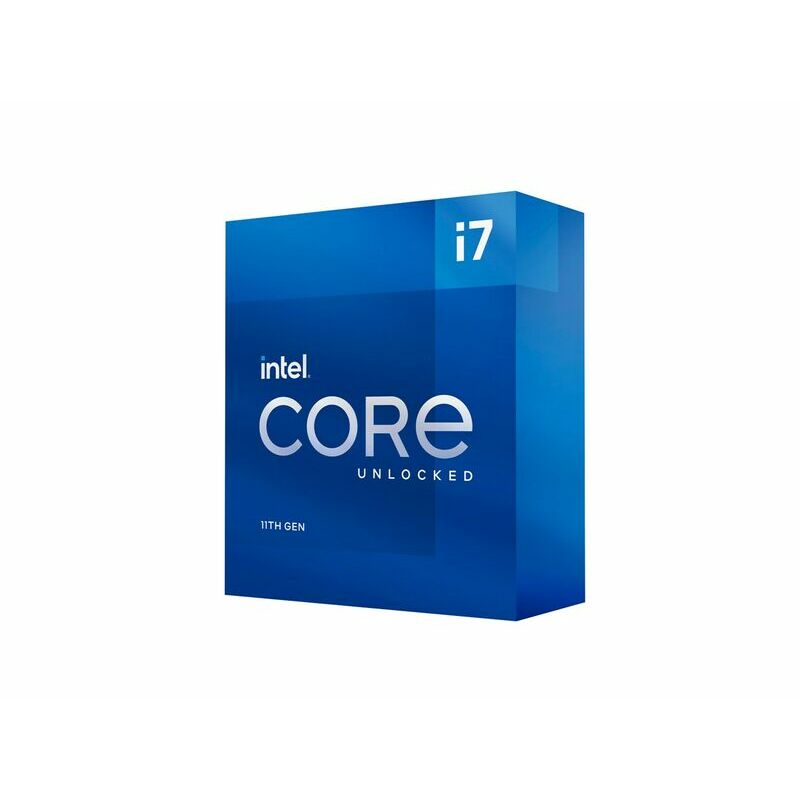

Processor model | i7-11700K |
Box | Y |
Processor threads | 16 |
Component for | PC |
Processor cache type | Smart Cache |
Processor manufacturer | Intel |
Graphics |
---|
On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
On-board graphics card 4K support | Y |
On-board graphics card maximum resolution (HDMI) | 4096 x 2160 pixels |
Discrete graphics card model | Not available |
On-board graphics card refresh rate at maximum resolution (HDMI) | 60 Hz |
On-board graphics card base frequency | 350 MHz |
Number of execution units | 32 |
On-board graphics card dynamic frequency (max) | 1300 MHz |
On-board graphics card maximum resolution (DisplayPort) | 5120 x 3200 pixels |
On-board graphics card OpenGL version | 4.5 |
On-board graphics card ID | 0x4C8A |
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 60 Hz |
On-board graphics card maximum resolution (eDP - Integrated Flat Panel) | 5120 x 3200 pixels |
Number of displays supported (on-board graphics) | 3 |
Maximum on-board graphics card memory | 64 GB |
On-board graphics card model | Intel UHD Graphics 750 |
Discrete graphics card | N |
On-board graphics card | Y |
Features |
---|
Maximum number of PCI Express lanes | 20 |
PCI Express slots version | 4.0 |
Idle States | Y |
Embedded options available | N |
CPU configuration (max) | 1 |
Execute Disable Bit | Y |
Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
PCI Express configurations | 1x16+1x4, 2x8+1x4, 1x8+3x4 |
Scalability | 1S |
Thermal Monitoring Technologies | Y |
Memory |
---|
Maximum internal memory supported by processor | 128 GB |
Memory types supported by processor | DDR4-SDRAM |
Memory clock speeds supported by processor | 3200 MHz |
ECC | N |
Memory channels | Dual-channel |
Operational conditions |
---|
Tjunction | 100 °C |
Weight & dimensions |
---|
Processor package size | 37.5 x 37.5 mm |
Processor special features |
---|
Intel Stable Image Platform Program (SIPP) | Y |
Intel Clear Video Technology | Y |
Intel Trusted Execution Technology | Y |
Intel 64 | Y |
Intel® Thermal Velocity Boost | N |
Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
Intel® Quick Sync Video Technology | Y |
Intel® Identity Protection Technology (Intel® IPT) | Y |
Intel® InTru™ 3D Technology | Y |
Intel® Clear Video HD Technology (Intel® CVT HD) | Y |
Intel® AES New Instructions (Intel® AES-NI) | Y |
Intel® vPro™ Platform Eligibility | Y |
Intel® Boot Guard | Y |
Intel® Turbo Boost Technology | 2.0 |
Intel® Deep Learning Boost (Intel® DL Boost) | Y |
Enhanced Intel SpeedStep Technology | Y |
Intel Turbo Boost Max Technology 3.0 | Y |
Intel® OS Guard | Y |
Intel Virtualization Technology for Directed I/O (VT-d) | Y |
Intel VT-x with Extended Page Tables (EPT) | Y |
Intel Virtualization Technology (VT-x) | Y |
Intel® Secure Key | Y |
