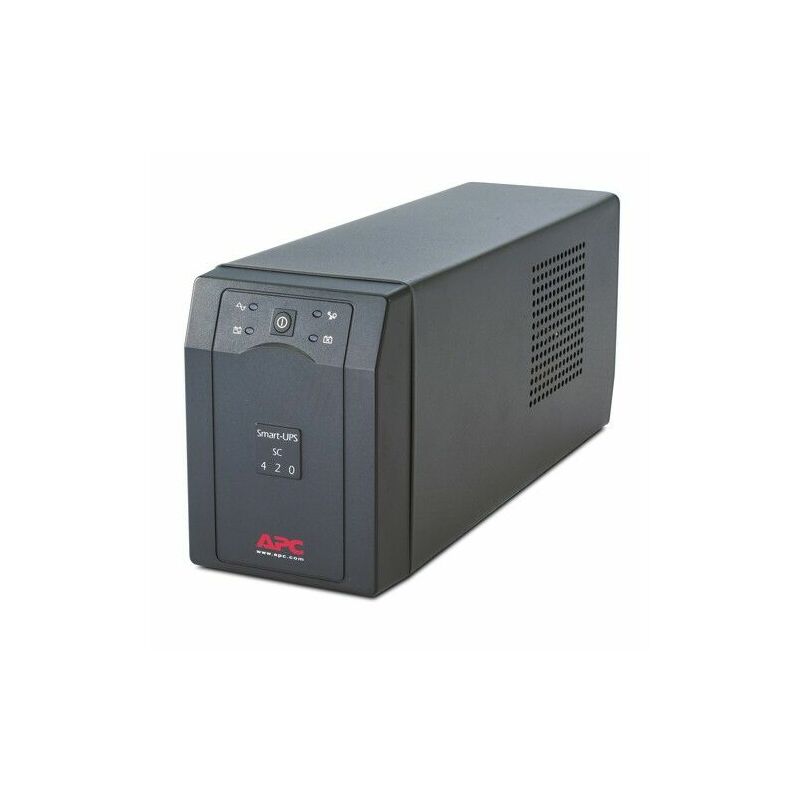

APC SMART SC 420VA 230V SC420I

APC Smart-UPS, 420VA/260W, na wejściu 230V/na wyjściu 230V, Interface Port DB-9 RS-232

At the exit
Output power: 420 VA
Output power: 260 Watts
The maximum power that can be configured: 420 VA
The maximum power that can be configured: 260 Watts
Output voltage: 230V

At the entrance
Nominal input voltage: 230V
Frequency at input: 50/60 Hz +/- 3 Hz (auto sensing)
Input jack type: IEC-320 C14
Input voltage range in basic mode: 160 - 286 V
Variable input voltage range in basic mode: 151 - 302 V

Batteries and backup time
Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Spare battery kit: RBC2
Number of RBC sets: 1
Typical holding time at 50% load: 13.5 minutes (130 Watts)
Typical hold time at full load: 5.5 minutes (260 Watts)

Communication and management
Communication port: DB-9 RS-232
Front panel: LED status display with On Line: On Battery: Replace Battery and Overload indicators
Audible alarm: Alarm when on battery: distinctive low battery alarm

Surge protection and filtration
Rated surge energy (in joules): 320 Joules
Filtration: Full time multi-box noise filtering: 0.7% IEEE surge let-through: zero clamping response time: meets UL 1449
Data line protection: RJ-45 Modem / Fax / DSL / 10-100 Base-T protection

Software CD, RS-232 signal cable for Smart-UPS, User's guide
